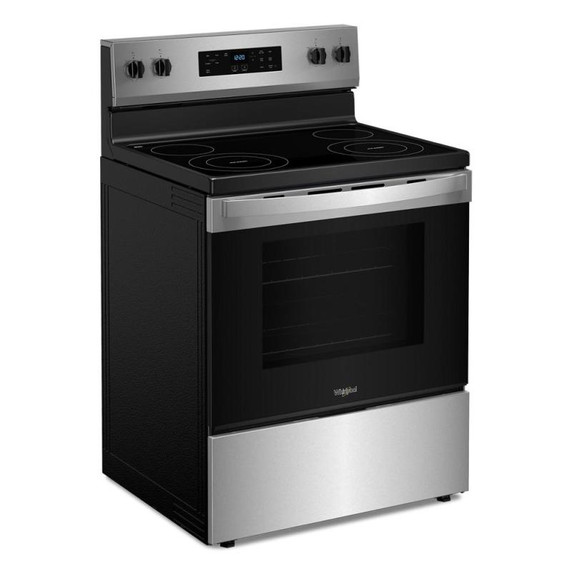

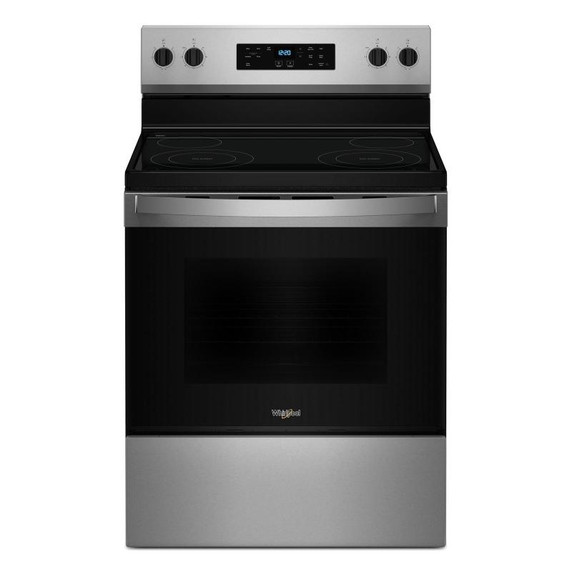

Whirlpool® 30-inch Electric Range with 4 Elements YWFES3530RS
*When comparing the 9" element to the standard 6" element on the same unit.

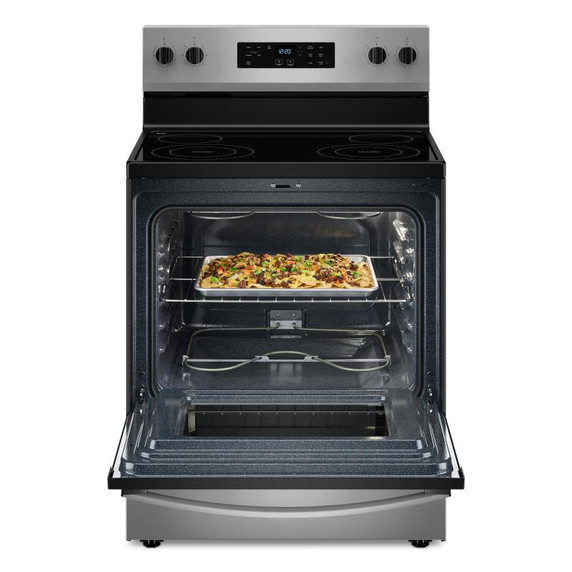

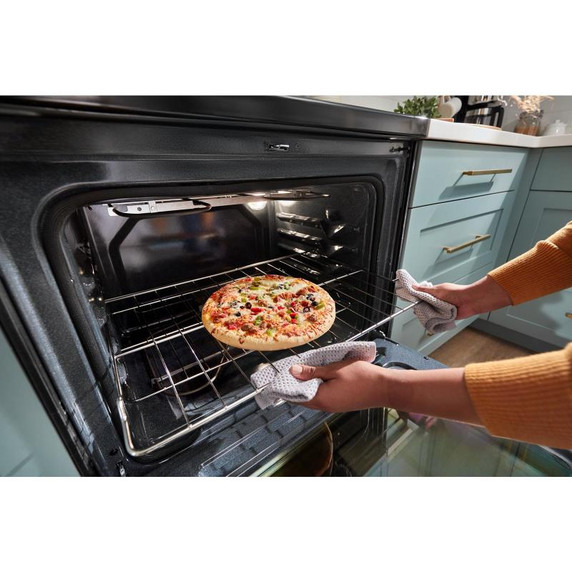

No Preheat ModeTake Preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.

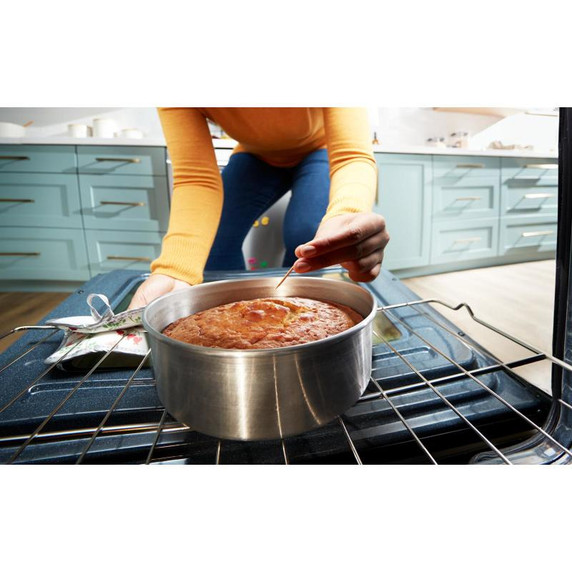

BakeSpend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.

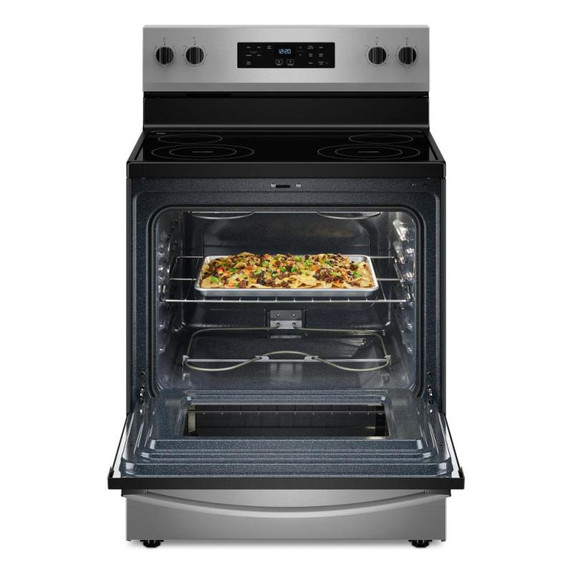

BroilRedefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
2 FlexHeat™ Dual Radiant ElementsCustomize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.
Cooktop FlexibilityEasily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.
Keep Warm SettingUse the Keep Warm Setting in the oven to help your dishes stay warm until your family is ready to dig in.
Warm ZoneUse the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.

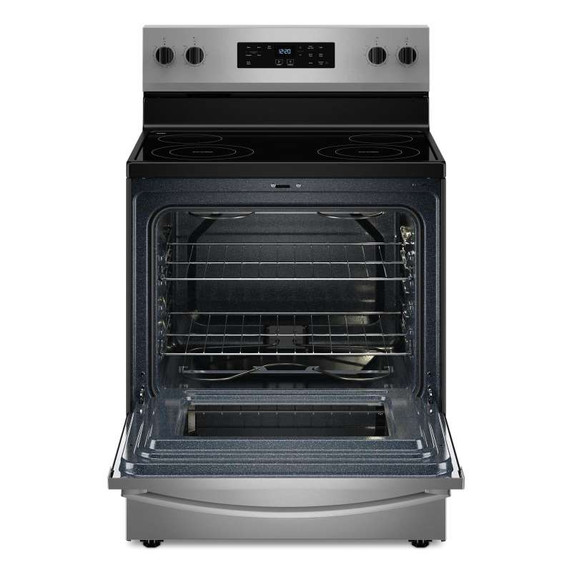

Large Capacity OvenCook for a crowd and fit large dishes, like a full-sized turkey, into the spacious large capacity 5.0 cu. ft. oven.
5.3 CuFt CapacityCook for a crowd and fit large dishes, like a full-sized turkey, into the spacious 5.3 Cu. Ft. Capacity.
Self-Clean CycleEasily clean your oven with the adjustable Self-Clean Cycle that can be customized based on the amount of spills and splatters.
Storage DrawerEasily store kitchen items, from baking sheets to cooking pans, in the Storage Drawer.
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW11123246
Extended Service Plan ParentEW04IW2Y, EW04IW4Y, EW04IW1Y
Product To Product PairsUXT5230BDS, WVW73UC0LS, UVL5430JSS, WVU17UC0JW, WVW51UC0LS, WVW57UC0FS, WVU57UC0FS, WVW53UC0LS, UXT5530AAS, WVU37UC0FS, WVW53UC0HV, WVU17UC0JS, UXT4130ADS
Electrical
Hz60
Power Cord IncludedYes
Amps40
Volts208
Watts7
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year507
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Rack Guide TypeMolded
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center
Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Convection FunctionsNo
Configuration and Overview
Fuel TypeElectric

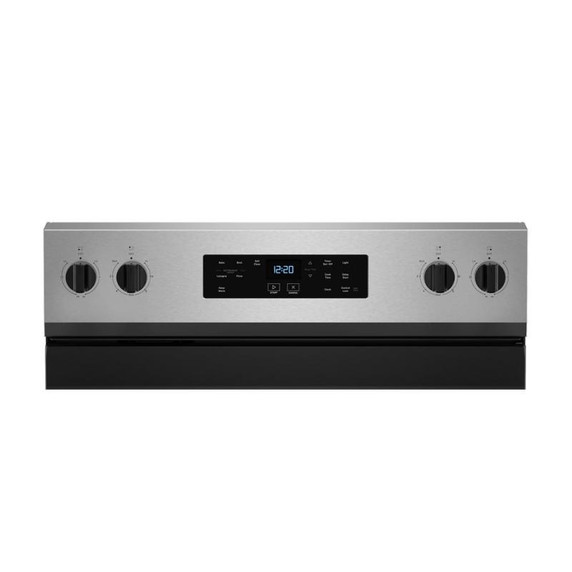

Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Description
Range TypeFreestanding
Energy
Annual Energy Usage Kwh507
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"

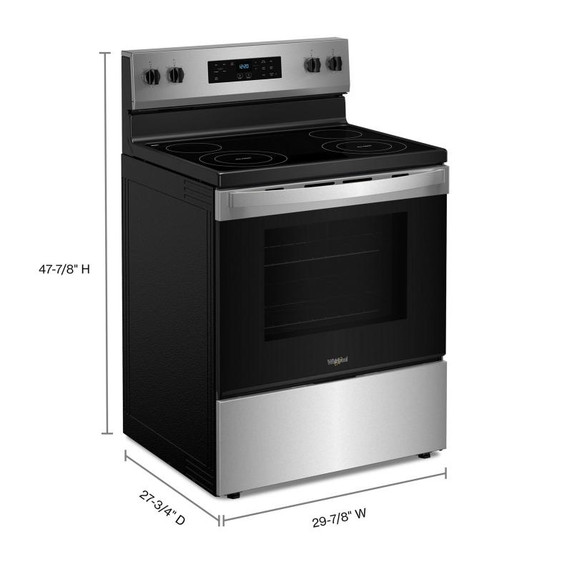

Depth27.75"
Gross Weight160.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.88"
Capacity FT3 (cubic feet)5.3
Width29.88"
