10'' Even-Heat™ Ultra Power™ Element with Simmer SettingProvides greater versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

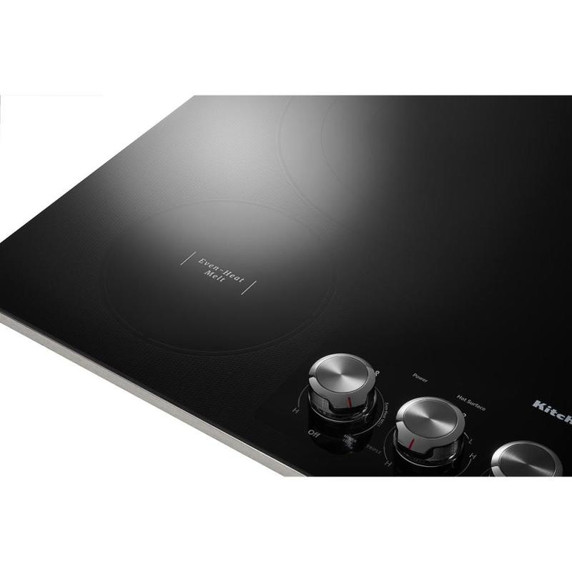

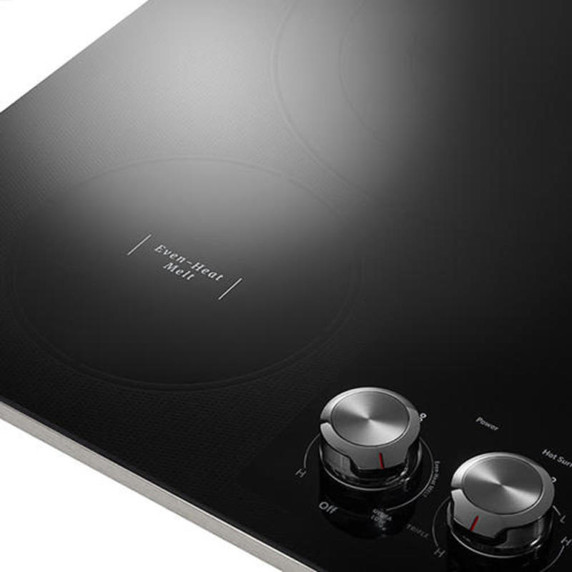

6'' Even-Heat™ Element with Melt SettingCombines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

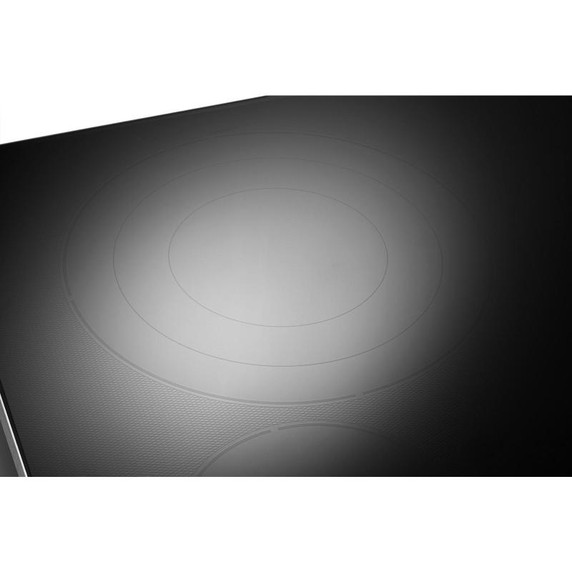

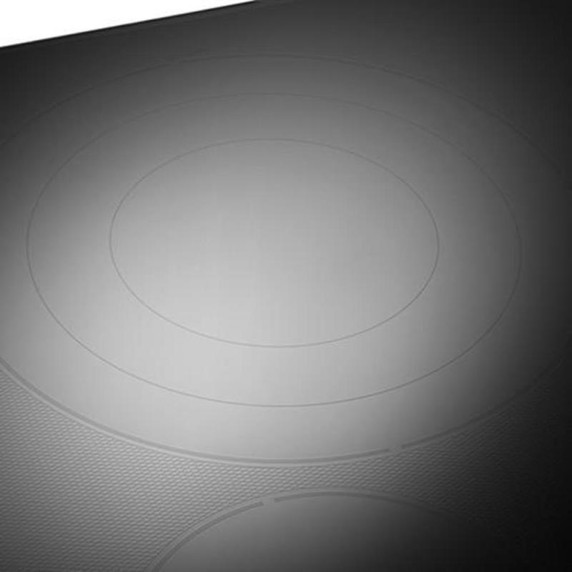

12''/9''/6'' Triple-Ring Round ElementMaximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.
Two 6'' 1200-Watt Round ElementsCan reach a power output of up to 1200-watts to handle your daily cooking needs.
Hot Surface IndicatorProtects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.
Metal Control KnobsSubstantial, professionally-inspired stainless steel knobs easily adjust the cooktop's elements through an infinite number of heat settings, offering responsiveness and flexibility in control.
Control LockHelps prevent unintended use and makes it easier to clean the control panel.
Country Of OriginUSA
Optional AccessoriesW10355051B
Extended Service Plan ParentEW07IW4Y, EW07IW1Y, EW07IW2Y
Product To Product PairsKVIB606DSS, KVWB406DSS, KVUB606DSS, KVWB606DSS, KVUB406GSS, KXD4636YSS, KVWB606HBS, KVIB606DBS, UVL6036JSS
Hz60
Volts240

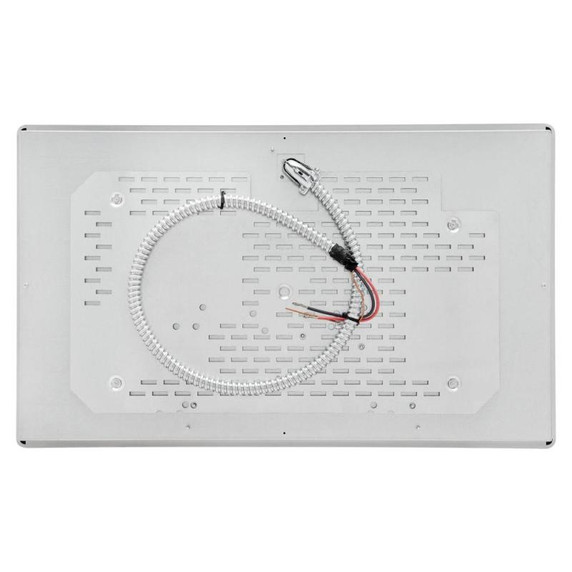

Power Cord IncludedNo
Amps40
208v CompatibleYes
ULYes
ADA CompliantYes
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Right Front Element Burner Power3200W
Right Front Element Burner Size10in./6in.
Center Rear Element Burner TypeStandard
Left Front Element Burner Power1300W
Left Front Element Burner Size6in.
Left Front Element Burner TypeEven-Heat™
Left Rear Element Burner Power3000W/2200W/1100W
Left Rear Element Burner Size12in./9in./6in.
Left Rear Element Burner TypeTriple
Center Rear Element Burner Size8in.
Center Rear Element Burner Power1800W
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Fuel TypeElectric
Size In36
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Control TypeManual
Control LocationFront
Knob TypeMetal
Kad CooktopADA Compliant

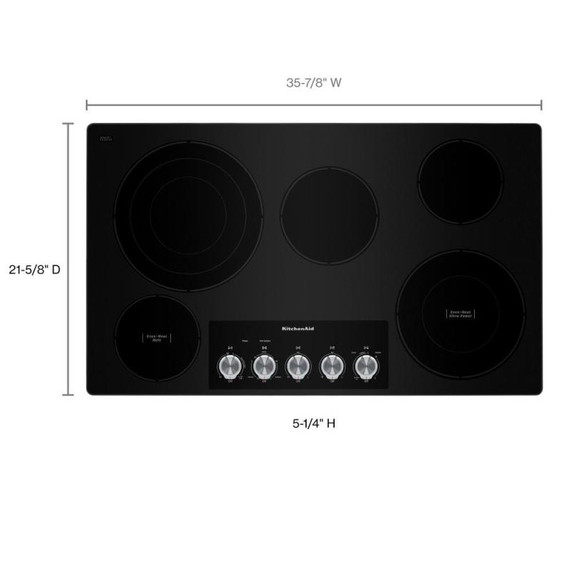

Depth21.75"
Height5.25"
Maximum Height5.25"
Net Weight44.0 lbs.
Width36.31"
Cutout Depth20.38"
Cutout Width34.56"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
