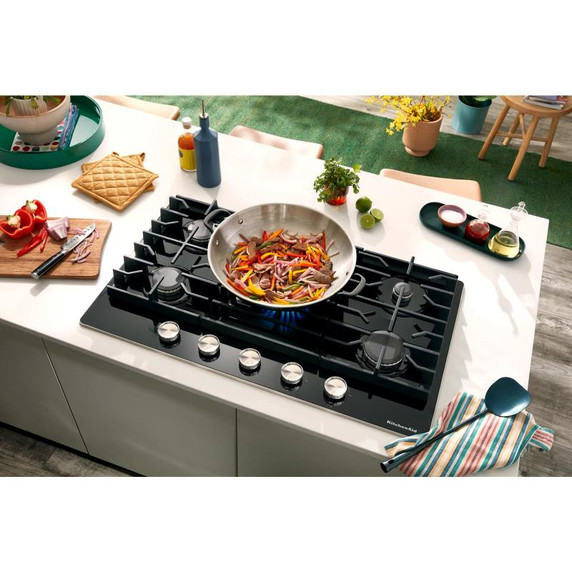

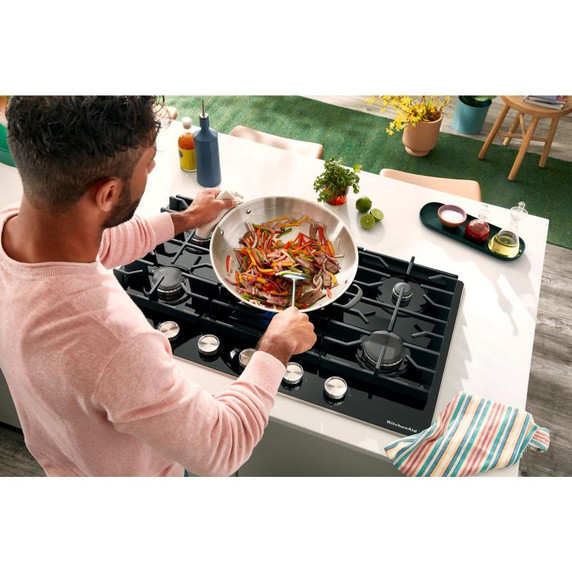

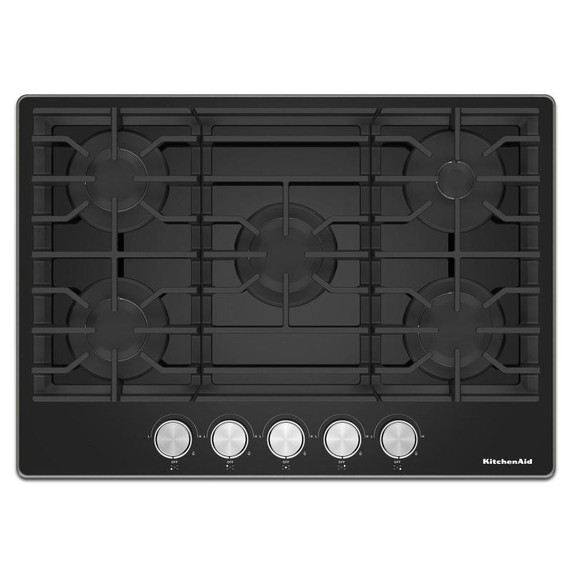

Kitchenaid® 30" Gas-on-Glass Cooktop KCGG530PBL
KitchenAid Cook Up The Savings Event, September 26 - October 30, 2024. Save $300 when you purchase 3 qualifying KitchenAid® major kitchen appliances. Save $400 on 4. Save $500 on 5 or more!

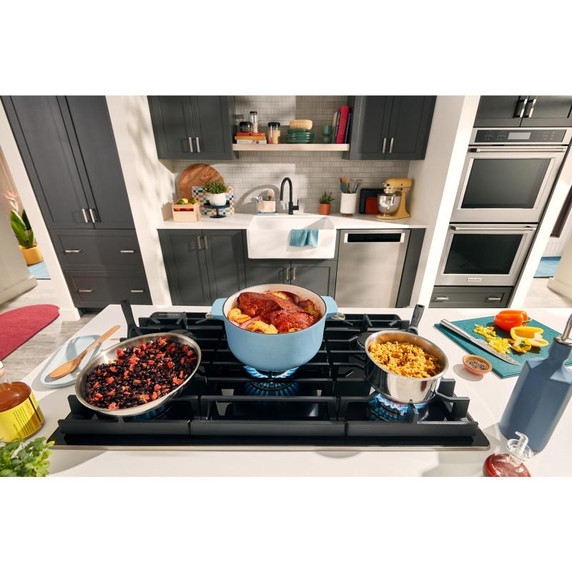

Most Powerful 30" Gas-on-Glass Cooktop**Based on total BTUMost Powerful 30" Gas on Glass Cooktop*. 56.2K total BTU through 5 individual burners, including a central 18K burner. *Based on total BTU

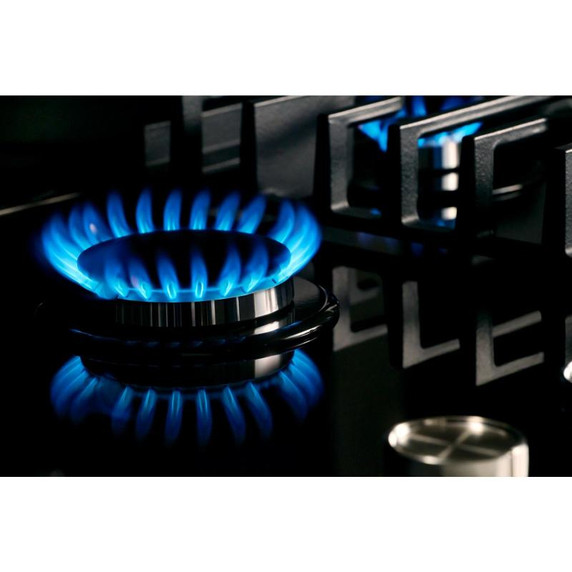

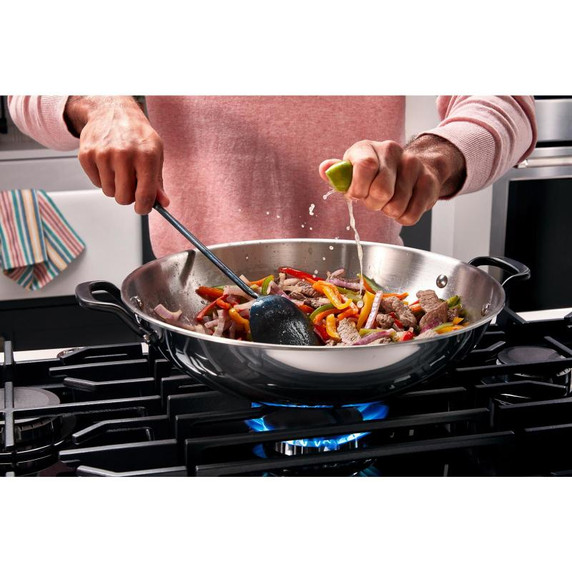

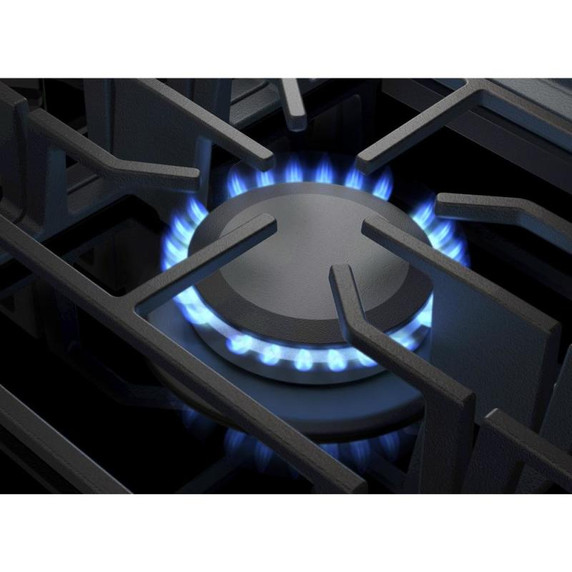

18K BTU BurnerDelivers the high-heat you need to successfully sear, sauté, stir-fry, and bring pots to a rolling boil.
5K BTU BurnerA flame sized for small saucepans to manage low temperatures for simmering sauces until they look, feel and taste delicious.
15K BTU BurnerReaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
Two 9.1K BTU BurnerUse your 9.1K BTU Burner for your daily cooking, searing, and sauteéing.
Easy to Clean Glass Top SurfaceA glass top surface that easily wipes to a reflective shine with just soap, water, and a soft cloth.

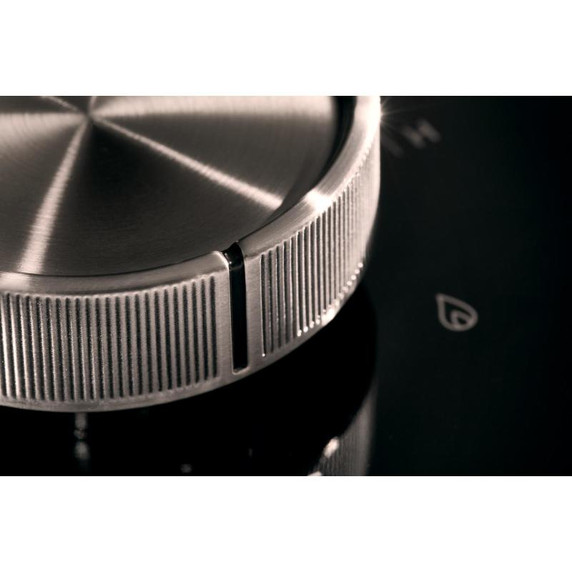

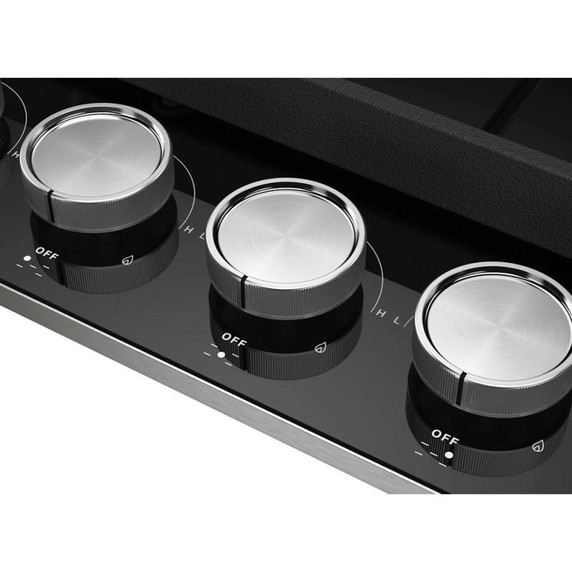

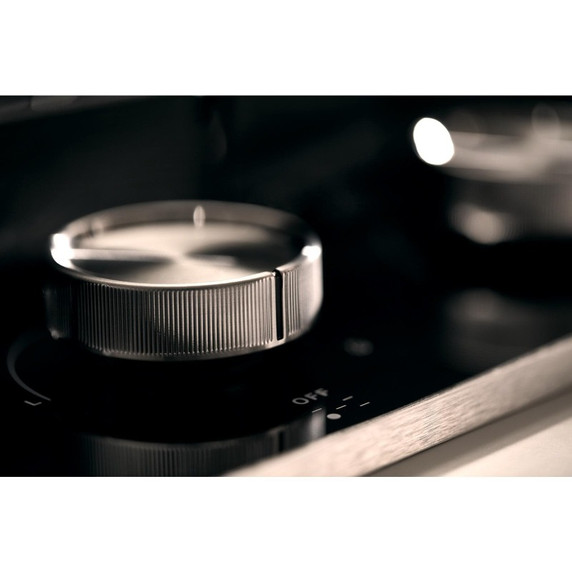

Dishwasher-Safe Metal KnobsProfessionally-inspired dishwasher-safe knobs are easy to clean and allow easy adjustment of cooktop settings, offering responsive, flexible control.
Dishwasher-Safe Full-Width Cast-Iron GratesCast-Iron Grates are dishwasher safe and allow for smooth, easy movement around the cooktop.
ADA CompliantThis appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
Country Of OriginUSA
Optional AccessoriesW10216179
Extended Service Plan Parent
Product To Product Pairs
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Right Front Element Burner Power15000BTU
Right Rear Element Burner TypeSimmer
Left Front Element Burner Power9100BTU
Left Rear Element Burner Power9100BTU
Right Rear Element Burner Power5000BTU
Center Element Burner Power18000BTU
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES127P; KOES130P; KOES527P; KOES530P; KOES730P
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Compatibility
Connectivity

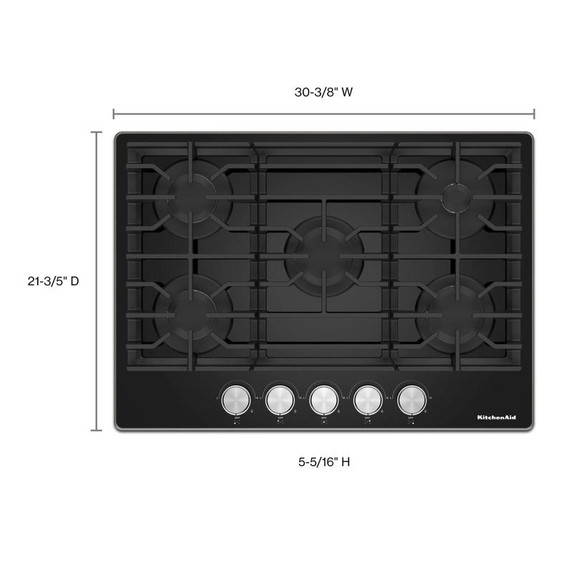

Depth21.6"
Height5.31"
Net Weight68.34 lbs.
Width30.38"
Cutout Depth19.0"
Cutout Height2.88"
Cutout Width29.0"
Carton Depth Inch24.96
Carton Height Inch12.99
Carton Width Inch34.68
