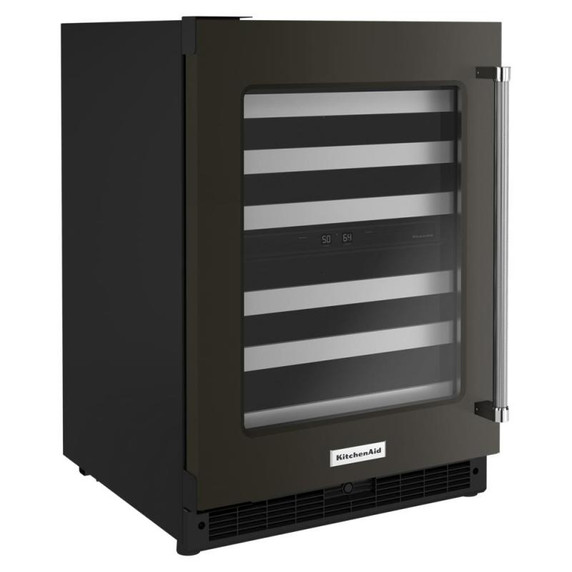

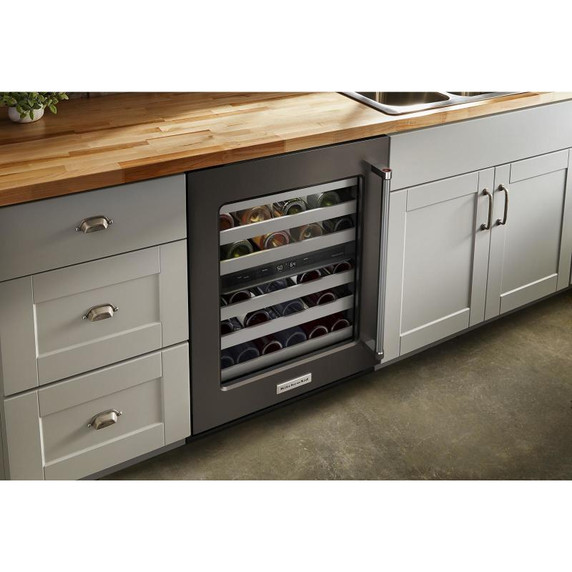

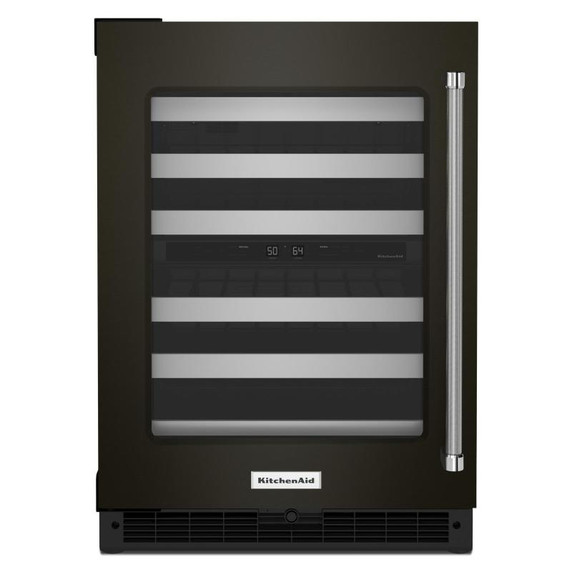

Fully Flush Installation with Hidden Hinges for a built-in lookprovides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the wine cellar door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 115 degrees.

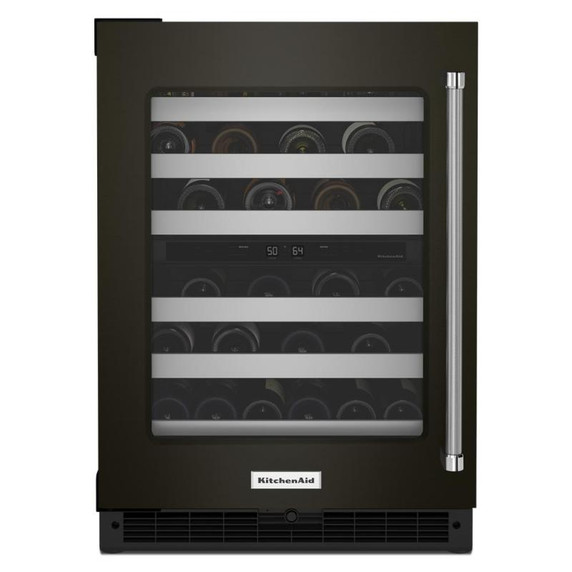

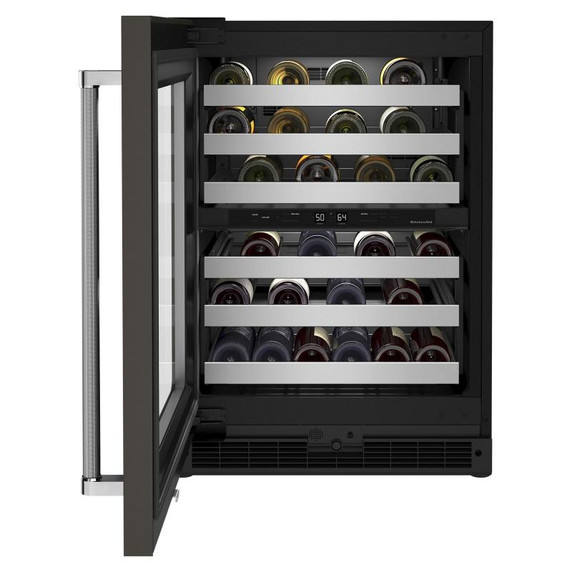

46 Standard Wine Bottle Capacityprovides room for 8 Bordeaux-size bottles on each of the five upper racks and 6 Champagne-style bottles on the lower rack. Overall capacity may be lower for collections that include taller or wider bottles in non-standard shapes and sizes.
Two Temperature-Controlled Zoneslet you separate reds and whites to store and serve each at the temperature you enjoy. Adjust the top zone from 42–54°F for whites and the bottom zone from 42–64°F for reds.
Temperature Monitoring Systemuses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.

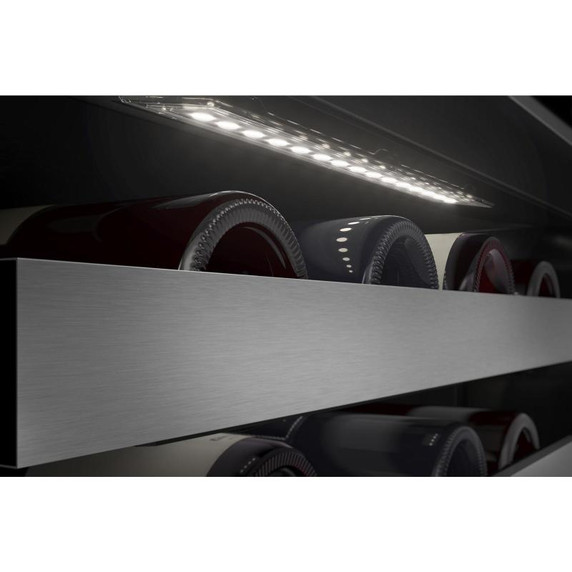

Motion-Activated LED LightingTurns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when no longer needed.

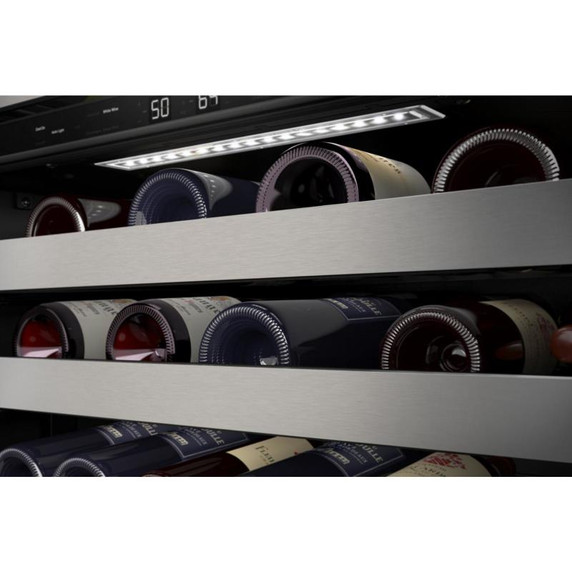

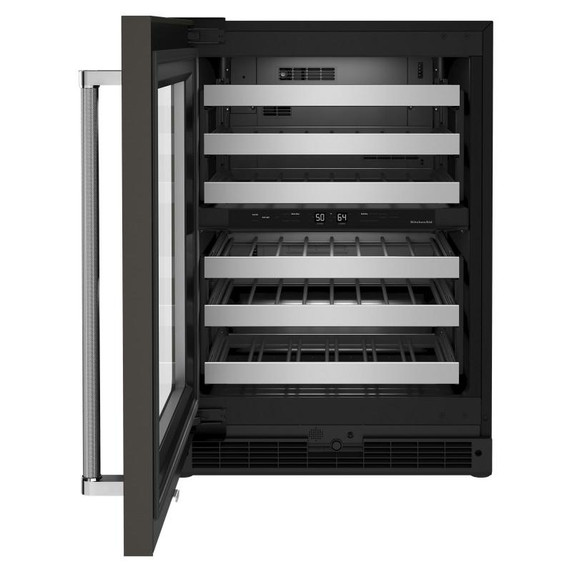

SatinGlide® Full-Extension Metal-Front Rackspull all the way out, making it easy to load bottles in when restocking and find just the one you want when serving. Metal fronts let you coordinate with your home decor.
UV-Protected Thermal Glass Doorfilters UV rays to protect the contents of your wine cellar from the damaging effects of heat and light.
Stainless Steel Cabinet and Base Grillecomplement the stainless steel door for a fully finished look.

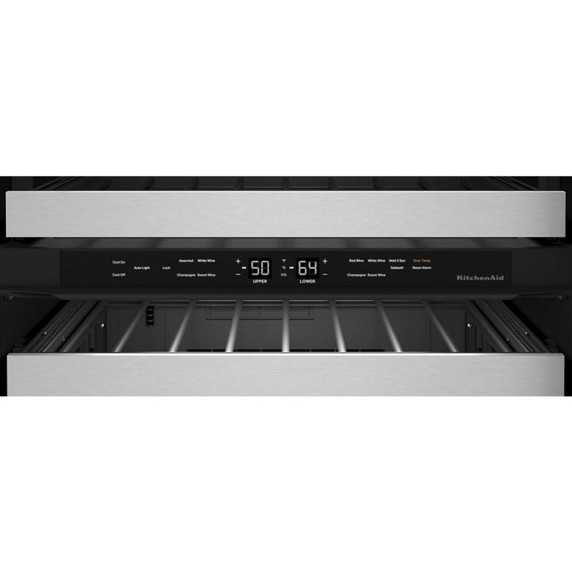

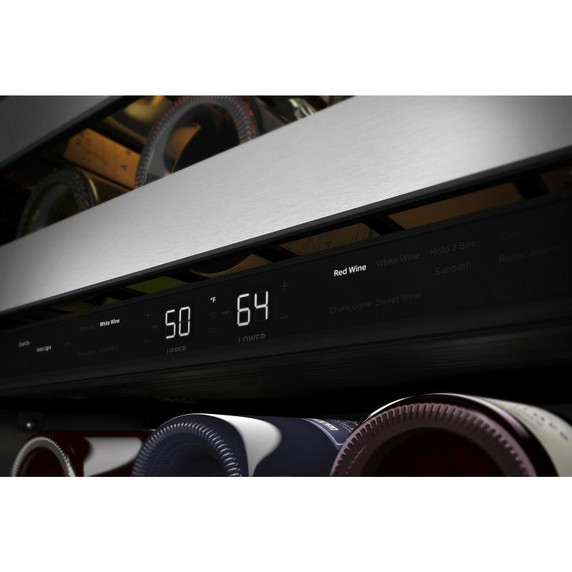

Backlit Touch Controlslocated on the divider between the two temperature zones make it easy to choose settings for what you're storing. The lighted control panel displays current temperatures for each zone and other status alerts.
Door Alarmalerts you if the door has been left open for five minutes or more and repeats every two minutes until you close the door or touch the controls.
Sabbath Mode (Star-K Certified)to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. Turning on Sabbath Mode disables automatic lights and alarm tones.
Automatic Defrostcycles automatically to help reduce frost build-up, freeing you from having to regularly empty the appliance and manually defrost.
Door Ajar Open AlarmYes
Sabbath ModeYes
Max Cool Fast CoolNo
Control LockoutYes
Auto DefrostYes
Cooling On OffYes
Number Of Temperature Controlled Zones2
Amps15
Volts115
Bottle Capacity46
Dual Temperature Controlled ZonesYes
Product To Product Pairs
Extended Service Plan ParentEW09IW1Y, EW09IW2Y, EW09IW4Y
ULYes
Energy Star QualifiedNo
Star K CertifiedYes
Handle MaterialMetal
Reversible DoorNo
Cabinet ColorBlack
WindowYes
Door OpeningLeft Swing
Handle LocationVertical
Cabinet MaterialStainless Steel
Handle TypeReach-Through Handle
Interior LightYes
Number Of Racks6
Liner FinishPlastic
Zone 1 Capacity24 Bottles
Zone 1 DescriptionUpper
Zone 1 Temperature Range42F to 54F
Zone 2 Capacity22 Bottles
Zone 2 DescriptionLower
Zone 2 Temperature Range42F to 64F
Rack Front MaterialStainless Steel
Carton Depth29.63"
Carton Height35.88"
Carton Width25.75"

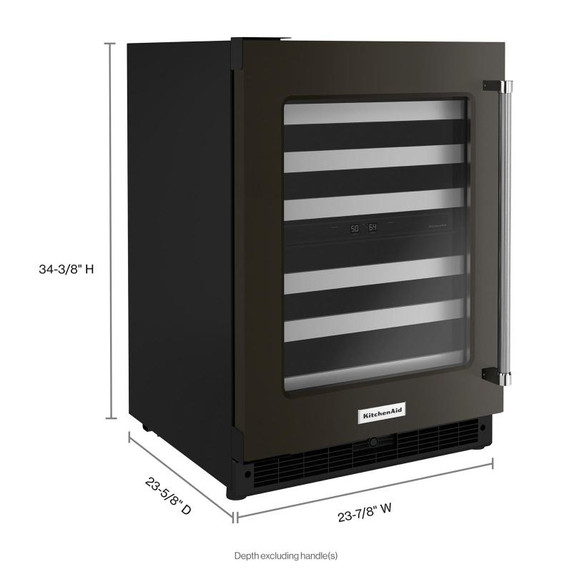

Depth Closed Excluding Handles23.63"
Depth Closed Including Handles26.44"
Depth With Door Open 90 Degree48.0"
Depth26.44"
Gross Weight136.7 lbs.
Height34.19"
Cutout Depth24.0"
Cutout Height34.5"
Cutout Width24.0"
Depth Excluding Doors21.69"
Height To Top Of Door Hinge34.38"
