30-inch Amana® Electric Range with Extra-Large Oven Window YAER6303MMS
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Product To Product Pairs
Extended Service Plan ParentEW04IW2Y, EW04IW4Y, EW04IW1Y
Electrical
Volts120
Power Cord IncludedYes
Amps40
Certifications
ULYes
Energy Rating Kwh Year494
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
GriddleNo
Cooktop Details

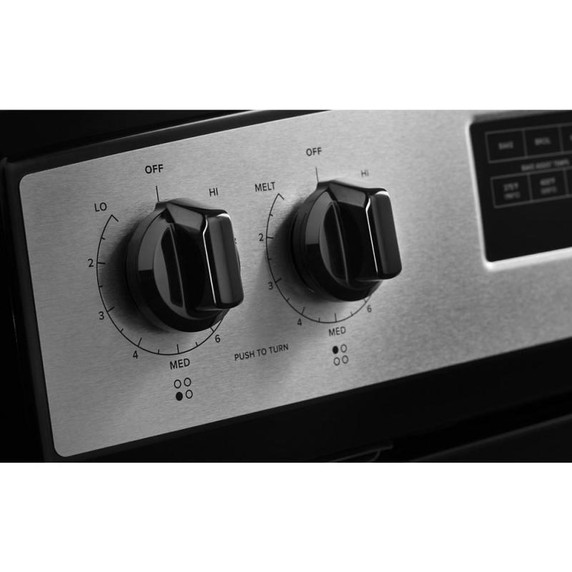

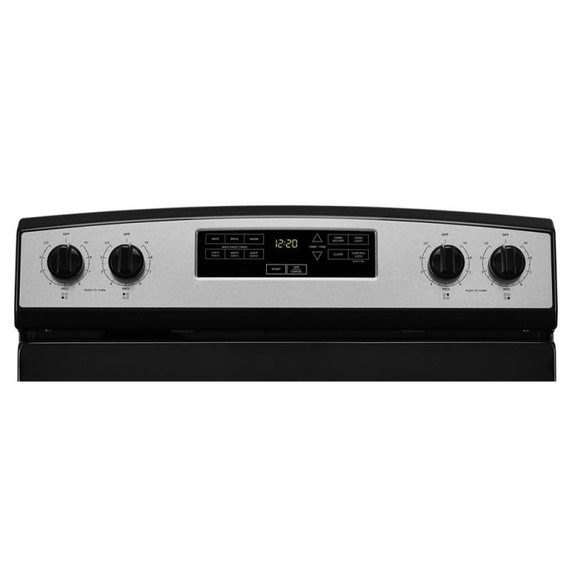

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Left Front Element Burner Power1800W
Right Front Element Burner Power1200W
Right Rear Element Burner Power1800W
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Convection Element TypeNone
Oven Cleaning TypeManual Clean
Convection FunctionsNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorBlack
Handle TypeReach-Through Handle
Configuration and Overview
Fuel TypeElectric
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Description
Range TypeFreestanding
Compatibility
Connectivity
Works With
Energy
Annual Energy Usage Kwh494
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.75"
Depth With Door Open 90 Degree46.69"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth27.75"
Gross Weight152.0 lbs.
Height46.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Capacity FT3 (cubic feet)4.8
