Unbranded

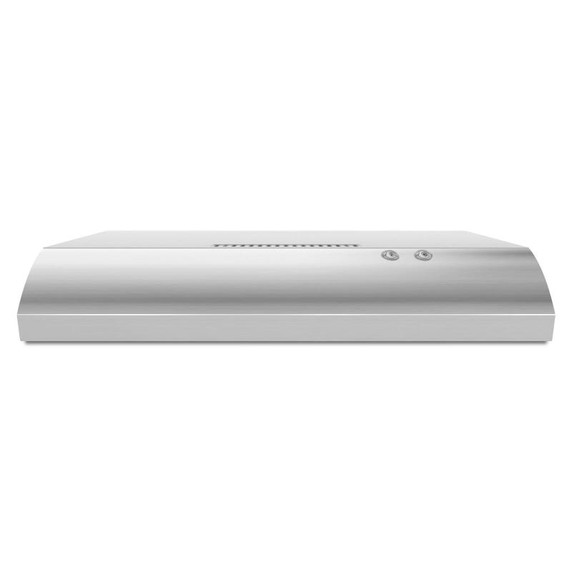

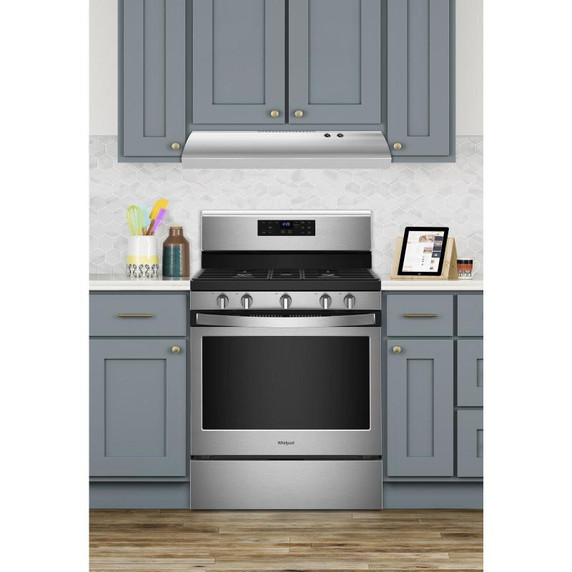

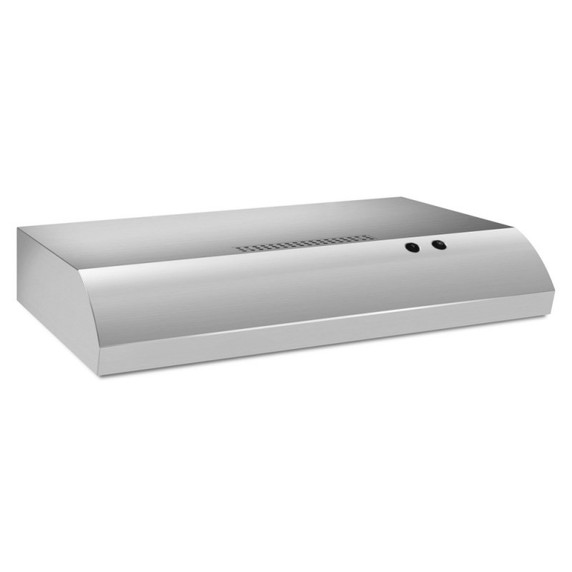

30" Range Hood with the FIT System UXT4130ADS

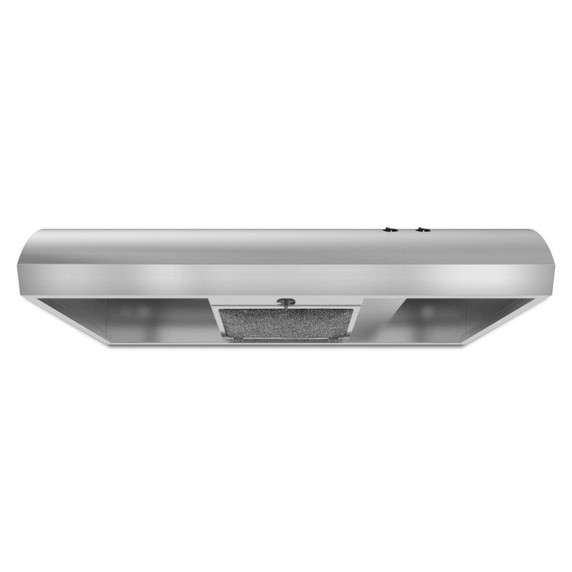

Grease filterThe grease filter helps trap unwanted grease and helps remove odors.
Hidden VentHidden Vent
Powerful 2-speed fanTwo fan speeds provide the right amount of ventilation for every meal you prepare.
Incandescent LightingSee what you have and what you need with Incandescent Lighting that brightens up the fridge.
FIT systemThe FIT system helps reduce measuring, cutting and trim so that your hood is a perfect fit every time.
Flexible ventilation optionsA convertible design lets you install almost anywhere. When external ventilation isn’t an option, the hood’s fan will recirculate air through filters that capture grease and cooking odors to help keep the kitchen clean.
Electrical
Volts120
Hz60
Amps15
Certifications
ULYes
Description
Size In30
Hood TypeUnder-the-Cabinet
Specifications
Country Of OriginMexico
Optional AccessoriesW10355450
Extended Service Plan ParentEW01IW1Y, EW01IW4Y, EW01IW2Y
Product To Product PairsYWEE750H0HB, YWFC150M0JB, WCE97US0KS, YWEE515S0LV, WCI55US0JS, YWFC315S0JS, YWFE745H0FH, YWEE750H0HW, YWFC150M0JW, WCE55US0HB, YWFE745H0FS, WCE55US0HS, YWGE745C0FS, YWEE515S0LS, WCE97US0KB, MEC8830HB, YWFC315S0JW, YWEE750H0HV, WCI55US0JB, YWFE515S0JS, YWEE515S0LB, WCE77US0HB, YWEE750H0HZ, YMET8800FZ, YWEEA25H0HZ, YWEE515S0LW, WCE77US0HS, YWEE745H0LZ, MEC8830HS
Features
Task LightingYes
Btu Threshold40 K
Task Light TypeIncandescent
Controls
Control TypeManual
Ventilation System
Duct Outlet Size In3.25 W x 10 H
Duct TypeRectangular
Duct DirectionVertical or Horizontal
Cfm Motor Class250
Sound Max Speed Sones5.3
Carton Depth20.75"
Carton Height7.0"
Carton Width31.75"

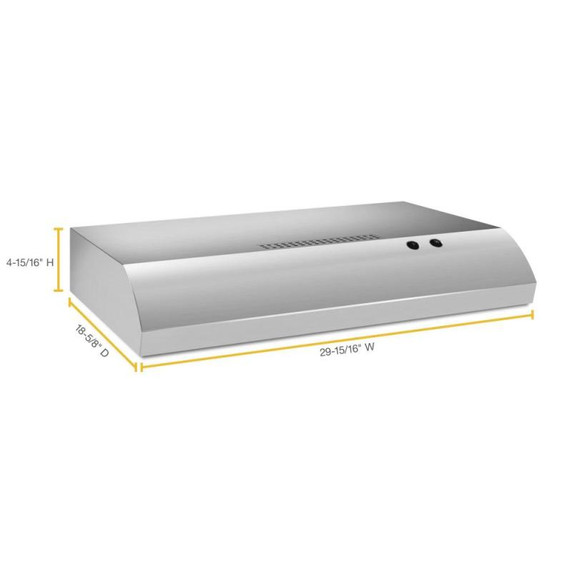

Depth18.63"
Gross Weight17.0 lbs.
Height4.94"
Width29.94"
